RF Inspection and Supervisory Solution

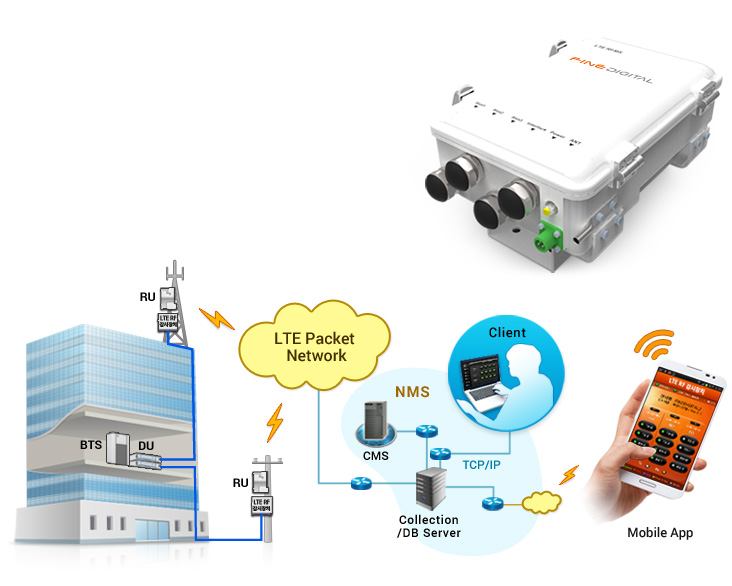

Synopsis

  • Real-time RF monitoring equipment for improving LTE service quality
  • Efficient RF analysis of various LTE service bands
  • OFDM-specific spectrum analysis
  • Uplink/downlink signal waveform monitoring, alarm generation and server
  • Reporting in case of equipment malfunctioning
  • Inspection variable measurement for RF stations
    (total power, channel power, ACLR, OBW, SEM)
  • 24/7 ubiquitous accessibility
    (instant alarm verification/service in transit and on the spot)
  • Spurious emission detection
    (single tone, in-band, out-of-band spurious emission)

Key Features

  • Wideband coverage: 800MHz, 1800MHz, 2100MHz, 2600MHz

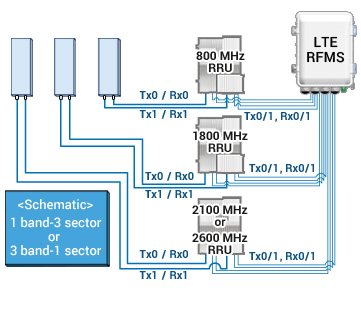

  • Multiple slots/ports: 3 slots (1 slot/sector) & 4 input ports per slot (Tx0/Tx1/Rx0/Rx1)

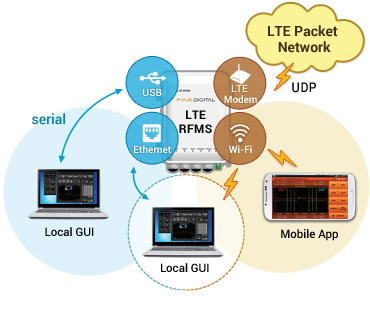

  • Information access interfaces: LTE modem, Ethernet, Wi-Fi
  • Functionalities: radio monitoring, interference analysis & alarm generation
  • Measurement variables: total power, ACLR, SEM (spectrum emission mask), OBW (occupied bandwidth), RB (resource block) usage
  • Spectrum display options: marker display, display mode (min/max, average, accumulation)
  • Other RF measurements: RSSI, SINR, Tx Pwr, RSRQ, CQI , etc.
  • Software upgrade: Local GUI or via remote client

Key Features - Details

Spurious emission detection

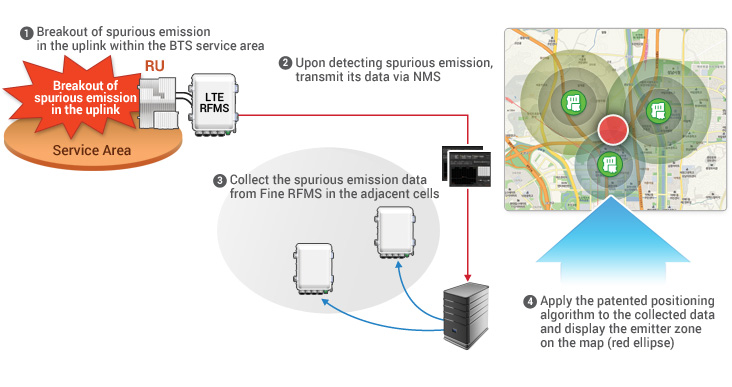

  • Apply the patented spurious emission positioning algorithm/zone its location
  • Single-tone spurious emission and broadband noise measurement/discrimination
  • In-band noise separation/report by utilizing OFDM signal characteristics

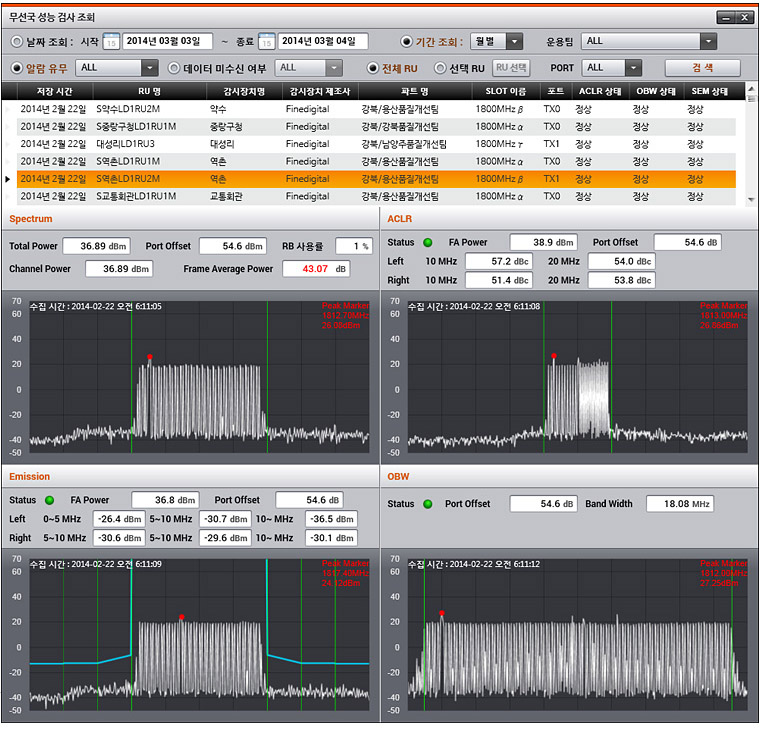

Inspection variable measurement for RF stations

  • Periodic inspection of RF interference in the RF stations (BTS/repeaters) for efficient management of RF resources
  • Automatic measurement of inspection variables (total power, channel power, ACLR, OBW, SEM ) in the RF stations according to the operator setting

Representative Business Cases

  • 1998 ~ 2003 : 2G/2.5G RF Inspection Supervisor development/delivery to SK Telecom
  • 2003 ~ 2009 : WCDMA RF Inspection Supervisor development/delivery to SK Telecom
  • 2013 ~ : LTE RF Inspection Supervisor development/delivery to SK Telecom
